Handling of Deleted Elements during Import from Polarion

Deletion of Work Items

During import from Polarion, LemonTree.Connect is capable of detecting elements which were deleted in Polarion. However, deleted elements from Polarion are not deleted by LemonTree.Connect. Instead, they are marked as deleted with a stereotype from LemonTree.Connect MDG Technology, called <<deleted>>.

deletedStereotype

If work item link roles are mapped to EA connectors, deletion of work item link roles is also considered during import. EA Connectors for deleted work item link roles are also marked as deleted with the <<deleted>> stereotype. Deleted connectors can be resolved the same way as deleted elements can be.

Resolving deleted Elements and Connectors in Enterprise Architect

For resolving elements that are marked as deleted, there are two options:

  1. Unassigning the stereotype <<deleted>>.
    This will remove the stereotype and during the next import the element will be again marked as deleted.

  2. Finally delete the element in the EA project.
    This will delete the element from the EA repository. This step cannot be undone!

Unassigning the stereotype <<deleted>>

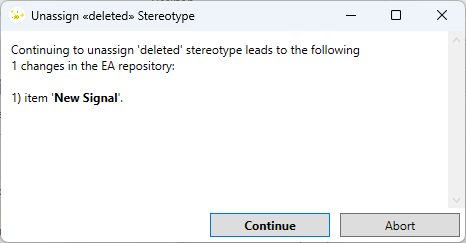

To remove the deleted mark from elements in EA, right click a package containing deleted elements and select Specialize > LemonTree.Connect Polarion > Deleted Elements > Unassign <<deleted>> Stereotype. This will show an overview of all elements where the stereotype will be unassigned:

unassignDeleted

Click Continue to unassign the stereotype from the elements.

Delete elements marked as <<deleted>>

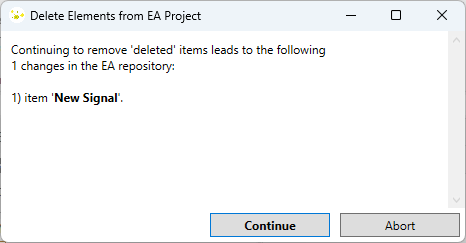

To finally delete the marked elements in EA, right click a package containing deleted elements and select Specialize > LemonTree.Connect Polarion > Deleted Elements > Delete Elements from EA Project. This will show an overview of all elements that are going to be deleted:

deleteElements

Click Continue to finally delete the elements.
