Diagram Mapping

General

The Diagram section of the configuration dialog is where you define the mapping between Codebeamer work item types and EA diagram types.

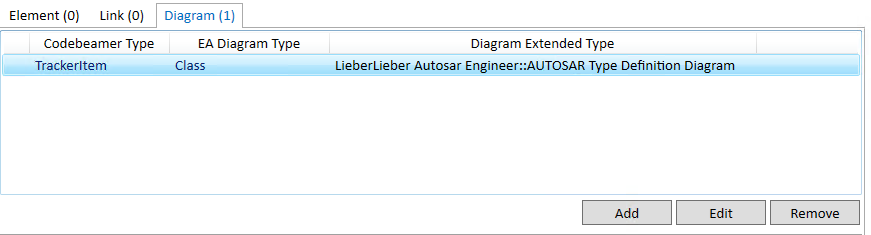

Each mapping rule consists of one Codebeamer type and one EA diagram type. You can also optionally add an Extended Type to make the mapping more selective.

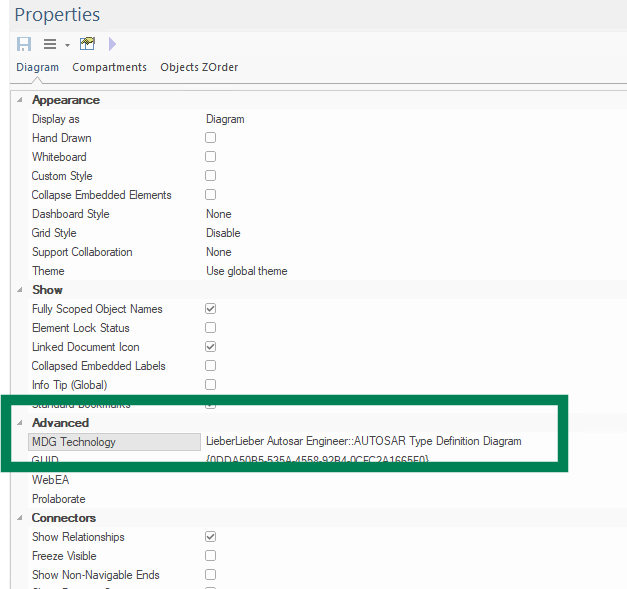

A Diagram's extended type can be found in the advanced section of the Diagram's Properties.

Refer to the Is Empty section to learn how to filter out unwanted extended types from a generic mapping rule.

Supported Diagram Types

• Activity
• Analysis
• Any Diagram
• Class
• Communication
• Component
• Composite Structure
• Custom
• Deployment
• Interaction Overview
• Object
• Package
• Requirement
• Sequence
• State Machine
• SysML Activity
• SysML Block Definition
• SysML Internal Block
• SysML Package
• SysML Parametric
• SysML Requirement
• SysML Sequence
• SysML StateMachine
• SysML Use Case
• Timing
• Use Case

Attach Diagrams to an imported tracker*

Packages configured for import have the option Specialize > LemonTree.Connect for Codebeamer > Attach Diagrams to Codebeamer

This will export only diagrams inside the selected Package back to the configured tracker.

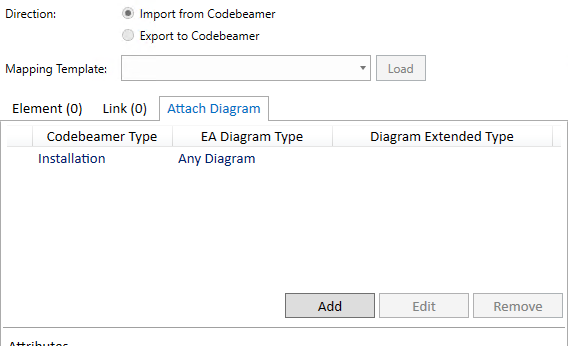

Diagrams exported with this option need to have a mapping rule configured in the "Attach Diagram" section.

Mapping Diagram Attributes

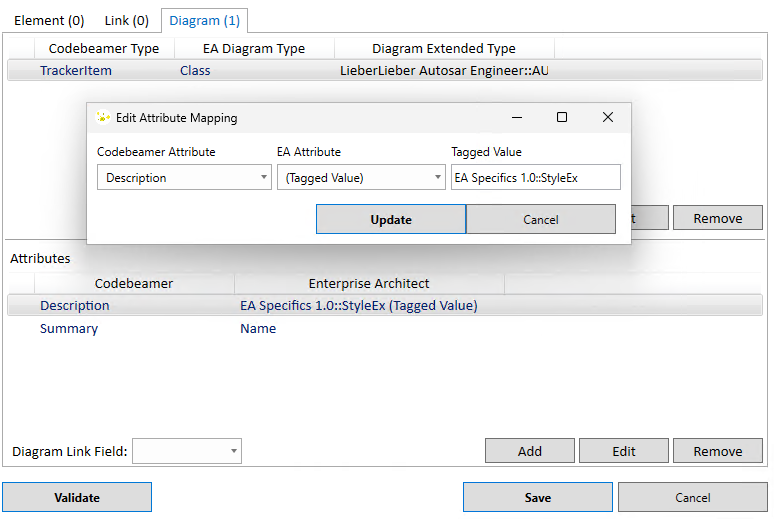

In general its possible to map any Diagram property if adressed by its full qualified name in the Tagged Value field.

A mapping list of commonly used properties can be found here soon.
